KM HEPA Leak/AG-250 Aerosol Generator (KM-Germany)
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
More information: sales2@norda-china.com
Description

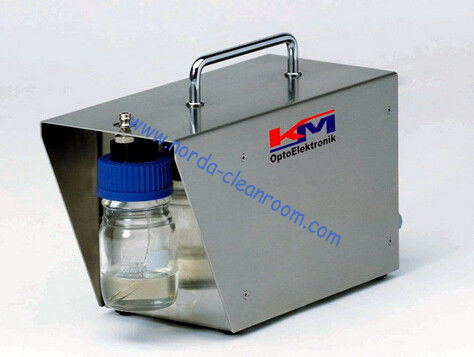

AG 250 aerosol generator
AG 250 aerosol generator has been designed for generating test aerosols with defined properties. The in-built flow meter with needle valve allows adjustment of the required concentration. By using the VD 100 dilution system combined with the AG 250 and a particle counter, the control of clean rooms, laminar flow boxes and safety work benches is enabled.
Principal application fields of the AG 250 are filter tests, acceptance- and control measurements of clean rooms, laminar flow boxes and safety work benches. The compact stainless steel housing ensures very easy handling and operation. The AG 250 features a controllable flow meter for adjustment of the required concentration. Centrepiece of the AG 250 is a binary nozzle with pressurized air supply according to the injector principle and a free accessible container for the liquids to be atomized.
- User friendly
- Low maintenance
- Variable concentration
- Very high particle generation
- Stainless steel housing
Specification
| Air flow range | 0.1-2500m3/h |
| Aerosol concentration | 5.2×106pcs/cm3@250L/h |
| Air pump flow rate | 0-500L/h |
| Aerosol type | DEHS, PAO, DOP, Polydispersed |
| Generator type | 1 Nozzle |
| Compressed air | Build-in air compressor |
| Power supply | 110-240V AC, 50/60Hz |
| Overall dim.(mm) | 280×120×150 |
| Weight(kg) | 4 |
