laser particle counter,ND6330 with 1CFM from Norda

I'm Online Chat Now

laser particle counter,ND6330 with 1CFM from Norda

China laser particle counter,ND6330 with 1CFM from Norda supplier
laser particle counter,ND6330 with 1CFM from Norda supplier laser particle counter,ND6330 with 1CFM from Norda supplier

Large Image :  laser particle counter,ND6330 with 1CFM from Norda

Product Details:

Place of Origin: Suzhou ,China
Brand Name: Suzhou ,China
Certification: certification of Norda
Model Number: ND S series

Payment & Shipping Terms:

Minimum Order Quantity: http://www.norda-china.com/en
Price: http://www.norda-china.com/en
Packaging Details: http://www.norda-china.com/en
Delivery Time: http://norda-cleanroom-instrument.sell.everychina.com
Payment Terms: http://norda-cleanroom-instrument.sell.everychina.com
Supply Ability: http://norda-cleanroom-instrument.sell.everychina.com
Contact Now
Detailed Product Description
Size: 230*220*210

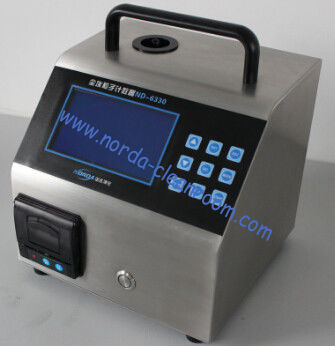

ND6330 laser particle counter (1CFM/  28.3L/min) is a kind of instrument used to measure the size and quantity of dust particles in unit volume air of clean environment, which can directly detect different class clean environment.

With features of using laser light source, large LCD screen display, small size, light weight, high precision, simple operation, storing & printing the measurement results and so on, this product is widely used in electronics, optical, chemical, food, cosmetics, e-health, biological products, aerospace, etc.

Features:

1.flow rate is 28.3L/Min(1CFM)
2. AC DC power supply (Built-in  lithium battery).
3.stainless steel housing, easy to surface cleaning and disinfection.
4. display six-channel particle sizes and particle concentration (pcs / m3).
5. automatic UCL calculation (for the 2010 version of GMP, 1998 version of GMP, ISO14644, etc.)

6.95% UCL calculation of particle concentration can be displayed directly (particles / cubic meter, grain / cubic feet)



Specification

Overall dim.(mm) 230 x 220 x 210 (Wide*Deep*High)
Display LCD screen
Weight 6.5Kg
Power 45W
Power supply DC16.8V(Built-in Lithium Battery)
Size channels 0.3,0.5,1,3,5,10μm
Calculation 95% UCL calculation of particle concentration can be displayed directly (particles / cubic meter, grain / cubic feet)
Flow rate 28.3L/min (Import vacuum pump)
Sample time 0~9999s (selectable)
Zero count ≤10min
Location labels 0~9999
Print Built-in Thermal Printer
Alarm I00, 1000, 10000 Class alarm
Date storage 1000 groups
Light source semiconductor laser(30000 hours mean time between failures)

Max. Particle concentration
 35000 particles/L

Operating Time
4 hours/7hours(customized)
Working condition Temperature:10~35℃;  Humidity:20%~75%RH;  Atmosphere Pressure: 86~106Kpa
Optional trolley for clean room
