Aerosol Generator for HEPA Leak detection and dop/PAO leak detection

I'm Online Chat Now

Aerosol Generator for HEPA Leak detection and dop/PAO leak detection

China Aerosol Generator for HEPA Leak detection and dop/PAO leak detection supplier

Large Image :  Aerosol Generator for HEPA Leak detection and dop/PAO leak detection

Product Details:

Place of Origin: http://www.nordachina.com/en
Brand Name: http://www.nordachina.com/en/Product/Ultrapure_Water_Foggers
Certification: http://www.nordachina.com/en
Model Number: http://www.nordachina.com/en/Product

Payment & Shipping Terms:

Minimum Order Quantity: http://www.nordachina.com/en
Price: http://www.nordachina.com/en
Packaging Details: http://www.nordachina.com/en
Delivery Time: http://www.nordachina.com/en/
Payment Terms: http://www.norda-china.com/en
Supply Ability: http://www.nordachina.com/en
Contact Now
Detailed Product Description
Power: Compressed Air

AG-60 is a small, light and rugged portable, self-contained Laskin-Nozzle aerosol generator. It can generate aerosol of 10ug/l to 100ug/l with airflow 50cfm/min to 4725cfm/min.



Product Instruction

AG-60 is a small, light and rugged portable, self-contained Laskin-Nozzle aerosol generator. It can generate aerosol of 10ug/l to 100ug/l with airflow 50cfm/min to 4725cfm/min. Laskin-Nozzle aerosol generators is with rugged stainless steel structure, big filling port, independent spray-head and pressure control, and normative and clean joint output.
AG-60 is lightweight and durable Laskin-Nozzle aerosol generator and the only one with switchable two modes in the country. It can produce dispersed suspension of submicron particles just needing a suitable voltage source, which also can use an external air source, can make fog volume triple big. We believe whatever you want to have about our instrument, you will find the one you want.

Product Function
AG-60 aerosol generator has 4 pieces of Laskin-nozzle. When with the pressure of 20 psig, it works and is diluted by the air of 472.5CFM,gas concentration approaching 100ug/l. Built-in control valve can make 1 or 4 Laskin-Nozzles work to supply a wide range of aerosol concentrations.

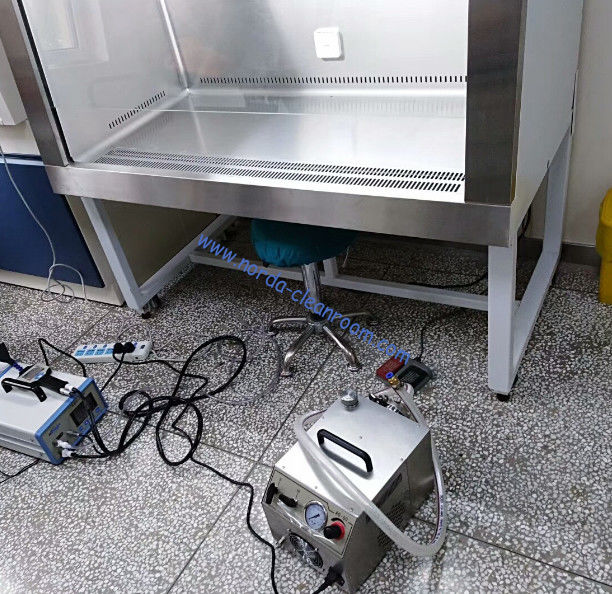

Applications include workstations, negative-pressure filtration units, biological safety cabinets and ceiling modules, HEPA filter and more.



Application Environment

Clean Bench    Clean Room    HV Built-in AC System   HEPA Filter   ULPA Filter     Operating Room

Specification】



Air flow range 50 - 2,000cfm/min(1.4-56.6m3/min)  built-in pump
50 - 4,725cfm/min(1.4-133.7m3/min) external air source
Aerosol concentration 100ug/l, flow of 472.5cfm/min
  10ug/l,  flow of 4725cfm/min
Generator type 1-4 Laskin Nozzles(about 2-14 nozzles)
Aerosol type PAO,DOP, polydispersed
Compressed air

1.Voltage source: build-in air compressor, no needing external air source
2. External air source: three times growing for aerosol volume
Overall dim.(mm) (37cm L* 26cm W *23cm H)
Gas type Varied diametric particle(cold)
Weight 15 KG
Power supply 220 VAC / 50Hz



Aerosol Generator for HEPA Leak detection and dop/PAO leak detection
