0.1 µm size range Particle Counter ACS Plus KM for clean room with 16 free channels

I'm Online Chat Now

0.1 µm size range Particle Counter ACS Plus KM for clean room with 16 free channels

China 0.1 µm size range Particle Counter  ACS Plus  KM for clean room with 16 free channels supplier
0.1 µm size range Particle Counter  ACS Plus  KM for clean room with 16 free channels supplier 0.1 µm size range Particle Counter  ACS Plus  KM for clean room with 16 free channels supplier

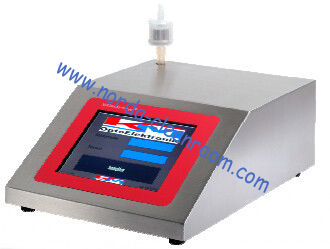

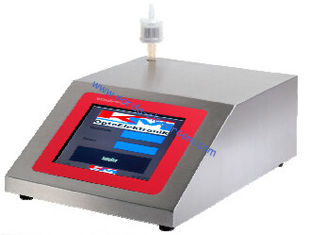

Large Image :  0.1 µm size range Particle Counter ACS Plus KM for clean room with 16 free channels

Product Details:

Place of Origin: http://www.nordachina.com/en/Product/KM_(Germany)_Particle_Counters
Brand Name: KM
Certification: http://www.nordachina.com/en/Product/KM_(Germany)_Particle_Counters
Model Number: Acs Plus series

Payment & Shipping Terms:

Minimum Order Quantity: http://www.nordachina.com/en/Product/KM_(Germany)_Particle_Counters
Price: http://www.nordachina.com/en/Product/KM_(Germany)_Particle_Counters
Packaging Details: http://www.nordachina.com/en/Product/KM_(Germany)_Particle_Counters
Delivery Time: sales2@norda-china.com
Payment Terms: http://www.nordachina.com/en/Product
Supply Ability: http://www.nordachina.com/en/Product
Contact Now
Detailed Product Description
Power: Electronic

Features:      ACS Plus  series     1 CFM         clean room    16 channel

size channels:start from 0.1 um

a maximum of 16 freely selectable particle   0.1 – 2 (5)


Size range from 0.1 um with a maximum of 16 freely selectable particle size channels
• Flow rate 1 CFM.
• Built-in measuring data memory for 50000 measurements
• Access authorization concept with password protection
• Software PAS for evaluation of the measured data via PC
• 8.4“ LCD TFT display
• Optionally with removable/ rechargeable Li-Ion batteries for easy operation at various measuring points
• CAN-BUS Interface for management of a network spanning up to 32 particle sensors (slaves) without need of additional hardware
• Weight: approx. 8 Kg


Easy handling

The large-size display with touch-screen function and concise menu navigation ensures a simple and trouble-free implementation even of major settings. Furthermore, the built-in access authorization concept offers an easy way to grant specific access permissions for individual operators. In addition the non-reflecting display surface allows a data reading from greater distance.

Flexible monitoring

Adapted to application requirements the high-end counter ACS Plus may be used as a stand-alone unit
or as a network monitoring system. Via device interface with appropriate sensors it is always possible to
monitor and record temperature patterns, relative humidity, differential pressure and volume flow, if desired. The implementation of an alarm panel has also been considered.

Specification

Model ACS Plus XX
Light Source Laser diode
Size Range(um) 0.1 – 2 (5)
Concentration Limit 150000/ 1 CFM
Flow Rate 28.3L/min(1CFM)
Weight (kg) 8
Dimension L*W*H(mm) 345x265x145
Flow-Generator Vacuum pump
Flow-Control Electronically monitored
Calibration Per ISO 21501-4; Latex-Aerosol
Display and Operation Robust and bright 8.4“ LCD TFT display SVGA, 800x600 pixel, luminous intensity 350cd/ m²,sunlight readable transmissive TFT active-matrix screens with cold cathode backlighting (CCFL),wide viewing angle
Sampling/Rinsing Time 1s to 99h,59min,59s
Sampling Modes Single measuring with 1 - 9 measurements for each cycle and automatic averaging, or continuous measuring with automatic averaging of 2 - 9 measurements each
Standard ISO 14644-1, VDI 2083
Printer Thermal printer 58 mm
Communication Mode Standard RS 232 for single application, RS 485 for networking
Data Content per
Record
Date, time, ID number, alphanumeric key, measuring and rinsing time,
16 particle size channels with cumulative particle count
Audible Alarm Single particle detection by acoustics, threshold exceeding alarm adjustable
Power Supply 230/ 115 VAC, 50/ 60 Hz, max. 400 Watt
Operating Range 5 - 35 °C, 10 - 80 % RH, noncondensing







More information: sales2@norda-china.com      Skype: lingx360



www.nordachina.com/en          www.nordachina.com/en         www.nordachina.com/en


Test instruments and air purification equipments and others used for clean rooms for you from Suzhou Norda!
