laser particle counter with1CFM 28.3L,50L,100L,model ND6100 series from Norda

I'm Online Chat Now

laser particle counter with1CFM 28.3L,50L,100L,model ND6100 series from Norda

China laser particle counter with1CFM 28.3L,50L,100L,model  ND6100  series from Norda supplier
laser particle counter with1CFM 28.3L,50L,100L,model  ND6100  series from Norda supplier laser particle counter with1CFM 28.3L,50L,100L,model  ND6100  series from Norda supplier

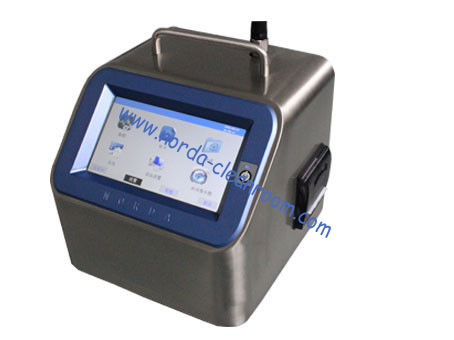

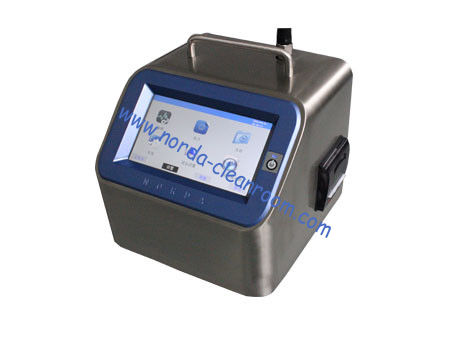

Large Image :  laser particle counter with1CFM 28.3L,50L,100L,model ND6100 series from Norda

Product Details:

Place of Origin: www.norda-china.com/en
Brand Name: www.norda-china.com/en
Certification: certification of Norda
Model Number: 225*230*216mm

Payment & Shipping Terms:

Minimum Order Quantity: http://www.norda-china.com/en/Product
Price: http://www.norda-china.com/en
Packaging Details: sales2@norda-china.com
Delivery Time: sales2@norda-china.com
Payment Terms: sales2@norda-china.com
Supply Ability: sales2@norda-china.com
Contact Now
Detailed Product Description
Required Agent Type: Sales2@norda-china.com Agent Number Limit: Sales2@norda-china.com
Agency Fee: Sales2@norda-china.com Contract Period: Sales2@norda-china.com

ND6100 series : ND6100,  ND6101 ,ND6102 ,ND6103



 selecting between 28.3L/min or 50L/min, or 100L/min

ND6100 laser particle counter (28.3L/min,50L/min ,100L/min) is a kind of instrument used to measure the size and quantity of dust particles in unit volume air of clean environment, which can directly detect different class clean environment.

With features of using laser light source, large LCD touch- screen display, small size, light weight, high precision, simple operation, storing & printing the measurement results and so on, this product is widely used in electronics, optical, chemical, food, cosmetics, e-health, biological products, aerospace, etc.



Features:

1.flow rate is between  28.3L/Min(1CFM),50L/min,100L/min.

2. AC DC power supply (Built-in  lithium battery).

3.stainless steel housing, easy to surface cleaning and disinfection.


4. display six-channel particle sizes and particle concentration (pcs / m3),you can have a selecting.
5. automatic UCL calculation (for the 2010 version of GMP, Euro version of GMP, ISO14644, 16292-2010,etc.)

6.95% UCL calculation of particle concentration can be displayed directly (particles / cubic meter, grain / cubic feet)

Specification:

Model ND-6100 ND-6101 ND-6102
Overall dim.(mm) 230 x 220 x 210 (Wide*Deep*High)
Display 7 inch LCD Touch screen
Flow rate 100L/min 28.3L/min 50L/min
Weight about 7.3Kg
Power supply DC24 V(Built-in Lithium Battery)
Size channels 0.5,1,3,5,10,25(μm)
optional: 0.3,0.5,1,3,5,10(μm)

0.3,0.5,1,3,5,10(μm)
Calculation 95% UCL calculation of particle concentration can be displayed directly (particles / cubic meter and others)
(for  ISO14644-1,the 2010 version of GMP, Euro version of GMP, 16292-2010,etc.)
Sample time 0~9999s (selectable)
Zero count ≤10min
Location labels 0~9999
Print Built-in Thermal Printer
Alarm 100, 1000, 10000 Class alarm
Date storage 10000  groups
Max. Particle concentration 35000 particles/L
Light source semiconductor laser(30000 hours mean time between failures)
Working condition Temperature:10~35℃;  Humidity:20%~75%RH;  Atmosphere Pressure: 86~106Kpa
Optional trolley for clean room
