TSI 8380 AIR CAPTURE HOOD USA

I'm Online Chat Now

TSI 8380 AIR CAPTURE HOOD USA

China TSI 8380  AIR CAPTURE HOOD USA supplier
TSI 8380  AIR CAPTURE HOOD USA supplier TSI 8380  AIR CAPTURE HOOD USA supplier

Large Image :  TSI 8380 AIR CAPTURE HOOD USA

Product Details:

Place of Origin: sales2@norda-china.com
Brand Name: TSI
Certification: sales2@norda-china.com
Model Number: TSI

Payment & Shipping Terms:

Minimum Order Quantity: sales2@norda-china.com
Price: sales2@norda-china.com
Packaging Details: www.norda-cleanroom.com
Delivery Time: www.norda-cleanroom.com
Payment Terms: www.norda-cleanroom.com
Supply Ability: www.norda-cleanroom.com
Contact Now
Detailed Product Description

More information:   sales2@norda-china.com
Description:

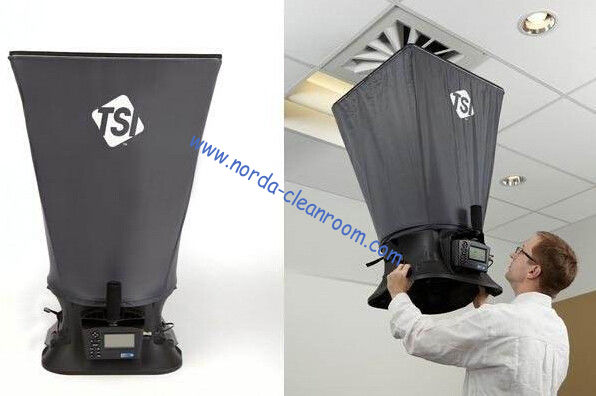

The AccuBalance® Air Capture Hood 8380 is a multipurpose electronic air balancing instrument primarily used for efficiently taking direct air volume readings at diffusers and grilles.



PRODUCT DETAILS

The AccuBalance® Air Capture Hood 8380 is a multipurpose electronic air balancing instrument primarily used for efficiently taking direct air volume readings at diffusers and grilles. It features a detachable micromanometer which can be used with optional probes for increased flexibility in multiple measurement applications.

Offering durable, trouble-free operation, this lightweight, ergonomically designed capture hood kit saves time and money by combining multiple measurement tools into one package. The AccuBalance Air Capture Hood 8380 helps you create healthy and energy efficient environments while meeting local codes, guidelines and regulations for ventilation systems.

CAPTURE HOOD FEATURES AND BENEFITS
· Ergonomic design and ultra light weight for easy, one-person operation
· Automatically senses and displays supply or return flows, saving time on the job
· Back pressure compensation ensures accurate readings
· Multiple hood sizes available for easy, cost effective use across multiple jobs
· Detachable digital micromanometer offers flexibility to use in multiple applications

DETACHABLE MICROMANOMETER FEATURES AND BENEFITS

· Accurately measures pressure, velocity and flow to help you meet industry standards
· Auto-zeroing pressure sensor reduces user-steps and saves time
· Automatic density correction increases reading accuracy
· Intuitive menu structure allows for ease of use and setup
· Large graphic display with backlight offers easy-to-use interface
o Displays up to five measurements simultaneously
o On-screen messages and instructions
o Programmed for multiple languages
· Integrated Log-Tchebycheff duct traverse application simplifies calculations
· Bluetooth communications for transferring data or remote polling
· Includes downloading software with USB cable
· Accommodates optional pitot, air flow (straight pitot), temperature/relative humidity, velocity matrix, or thermoanemometer probes for use in multiple applications

SPECIFICATION



Air flow 42~4250m3/hr
Accuracy ± 3% of reading or ± 12m3/hr(air volume>85 m3/hr)
Resolution 1 m3/hr
Air velocity measurement Range: 0.125∼78m/s pitot tube
0.125~25m/s normal probe
0.125~12.5m/s face velocity matrix
Temperature measurement Range: 4.4~60℃; resolution:0.1℃; accuracy:± 0.3℃
Humidity measurement Range: 5-95%RH; resolution:0.1%RH; accuracy:± 3%RH
Pressure measurement Differential pressure: ±3735Pa (Max. 37.5kPa)
Absolute pressure: 356~1016 mmHg
Dim. (mm) 610 × 610 (24" × 24") standard
Optional (mm) 610 × 1220 (24" × 48")
305 × 1220 (12" × 48")
305 × 1525 (12" × 60")
915 × 915 (36" × 36")
Weight 3.4kg (use 610 × 610mm air volume hood)
Dim. of carry case 660 × 660 × 180mm
Power source Mains adapter, (4)AA rechargeable NiMH batteries



































APPLICATIONS


· HVAC commissioning


· Clean room certification
· Troubleshooting HVAC systems


· Testing and balancing HVAC systems
