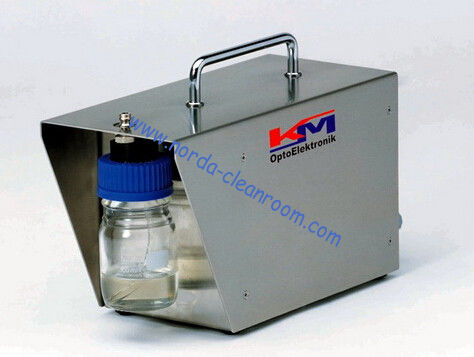

Aerosol Generator KM HEPA Leak model AG-250

China Aerosol Generator  KM HEPA Leak   model AG-250 supplier

Large Image :  Aerosol Generator KM HEPA Leak model AG-250

Product Details:

Place of Origin: Germany
Brand Name: KM
Certification: http://www.norda-china.com/en/
Model Number: AG-250 KM

Payment & Shipping Terms:

Minimum Order Quantity: http://www.norda-china.com/en/
Price: http://www.norda-china.com/en/
Packaging Details: http://www.norda-china.com/en/
Delivery Time: http://www.norda-china.com/en/
Payment Terms: http://www.norda-china.com/en/
Supply Ability: http://www.norda-china.com/en/
Contact Now
Detailed Product Description
Power: Electronic



Description

AG 250, Aerosol Generator

The AG 250 aerosol generator has been designed for generating test aerosols with defined properties. The in-built flow meter with needle valve allows adjustment of the required concentration. By using the VD 100 dilution system combined with the AG 250 and a particle counter, the control of clean rooms, laminar flow boxes and safety work benches is enabled.

Principal application fields of the AG 250 are filter tests, acceptance- and control measurements of clean rooms, laminar flow boxes and safety work benches. The compact stainless steel housing ensures very easy handling and operation. The AG 250 features a controllable flow meter for adjustment of the required concentration. Centrepiece of the AG 250 is a binary nozzle with pressurized air supply according to the injector principle and a free accessible container for the liquids to be atomized.

  • User friendly
  • Easy handling
  • Low maintenance
  • Variable concentration
  • Very high particle generation
  • Stainless steel housing

Specification

Air flow range 0.1-2500m3/h
Aerosol concentration 5.2×106pcs/cm3@250L/h
Air pump flow rate 0-500L/h
Aerosol type DEHS, PAO, DOP, Polydispersed
Generator type 1 Nozzle
Compressed air Build-in air compressor
Power supply 110-240V AC, 50/60Hz
Overall dim.(mm) 280×120×150
Weight(kg) 4
