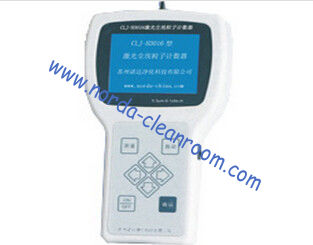

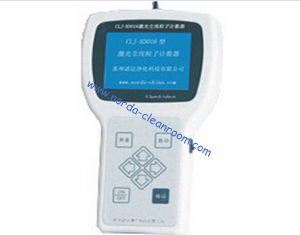

Handheld Particle Counter with 0.1CFM 2.83L/min model CLJ-H3016

Large Image : Handheld Particle Counter with 0.1CFM 2.83L/min model CLJ-H3016 Get Best Price

Product Details:

Place of Origin:	Suzhou city ,jiangsu Province, china
Brand Name:	Norda
Certification:	http://www.norda-china.com/en
Model Number:	http://www.norda-china.com/en

Payment & Shipping Terms:

Minimum Order Quantity:	http://www.nordachina.com/en
Price:	http://www.nordachina.com/en
Packaging Details:	http://www.nordachina.com/en/Product
Delivery Time:	http://www.nordachina.com/en/Product
Payment Terms:	http://www.norda-china.com/en
Supply Ability:	http://www.nordachina.com/en/Product

Contact Now

Detailed Product Description

Power:	Electronic	Usage:	Sales2@norda-china.com
Protable:	Handheld	Flow Rate:	0.1CFM

CLJ-H3016 Laser Particle Counter sales2@norda-china.com

Summary

CLJ-H3016 Laser Particle Counter is a kind of instrument used to measure the size and quantity of dust particles in unit volume air of clean environment, it can directly detect 100-300000 class clean environment. With features of using diode laser light source, large touch-screen display, small size, light weight, high precision, simple operation, microprocessor control, storing & printing the measurement results, this product is widely used in electronics, optical, chemical, food, cosmetics, e-health, biological products, aerospace, etc.

Specification

Overall Dim.(mm)	220×130×40 (W×D×H)
Display	LCD
Weight	0.8kg
Power	20W
Power supply	DC 7.5V±10% build-in Li-ion battery
Particle size channel	0.3, 0.5, 1.0, 3.0, 5.0, 10(μm) six channels 95% UCL calculation, display particle concentration (pcs/m3)
Flow rate	2.83L/min (import pump)
Zero count	≤10min
Print	External thermal printer
No. of measuring points	2～7
measuring times of each measuring point	2～9
Working condition	Temperature: 10℃-35℃
	Humidity: 20%-75% RH
	Atmosphere: 86kPa-106kPa
Measurement scope	100～1000000 class
Alarm	Low battery voltage 100, 1000, 10000 class
Max. sampling particle concentration	35000pcs/L(≤0.5μm), without acid-base corrosive air
Continuous working time	5 hours
Light source and life-time	Diode laser; ＞30000 hours
Data storage	1000 groups, without missing when power-off, equipped with PC special communication software
Standard configuration	Instrument container, recharger, probe, self-purifier, data wire, communication software
Optional accessory	Micro-printer, humiture probe
