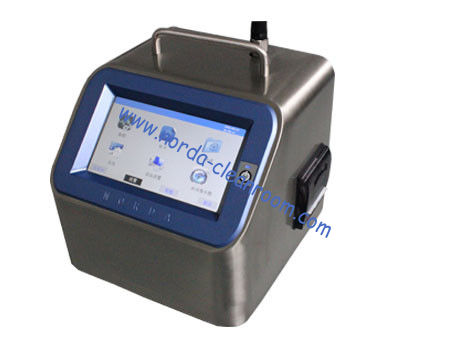

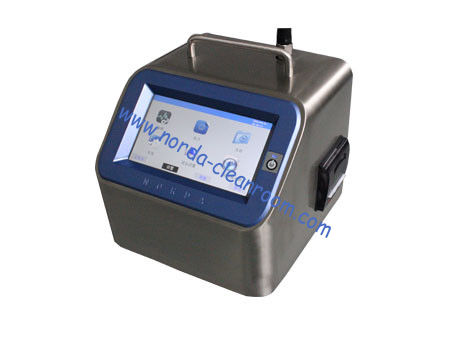

laser particle counter,ND6100 (1CFM 28.3L,50L,100L) series from Norda
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
ND6100 series : ND6100, ND6101 ,ND6102 ,ND6103
selecting between 28.3L/min or 50L/min, or 100L/min
ND6100 laser particle counter (28.3L/min,50L/min ,100L/min) is a kind of instrument used to measure the size and quantity of dust particles in unit volume air of clean environment, which can directly detect different class clean environment.
With features of using laser light source, large LCD touch- screen display, small size, light weight, high precision, simple operation, storing & printing the measurement results and so on, this product is widely used in electronics, optical, chemical, food, cosmetics, e-health, biological products, aerospace, etc.
Features:
1.flow rate is between 28.3L/Min(1CFM),50L/min,100L/min.
2. AC DC power supply (Built-in lithium battery).
3.stainless steel housing, easy to surface cleaning and disinfection.
4. display six-channel particle sizes and particle concentration (pcs / m3),you can have a selecting.
5. automatic UCL calculation (for the 2010 version of GMP, Euro version of GMP, ISO14644, 16292-2010,etc.)
6.95% UCL calculation of particle concentration can be displayed directly (particles / cubic meter, grain / cubic feet)
Specification
| Model | ND-6100 | ND-6101 | ND-6102 |
| Overall dim.(mm) | 230 x 220 x 210 (Wide*Deep*High) | ||
| Display | 7 inch LCD Touch screen | ||
| Flow rate | 100L/min | 28.3L/min | 50L/min |
| Weight | about 7.3Kg | ||
| Power supply | DC24 V(Built-in Lithium Battery) | ||
| Size channels | 0.5,1,3,5,10,25(μm) optional: 0.3,0.5,1,3,5,10(μm) |
0.3,0.5,1,3,5,10(μm) |
|
| Calculation | 95% UCL calculation of particle concentration can be displayed directly (particles / cubic meter and others) (for ISO14644-1,the 2010 version of GMP, Euro version of GMP, 16292-2010,etc.) |
||
| Sample time | 0~9999s (selectable) | ||
| Zero count | ≤10min | ||
| Location labels | 0~9999 | ||
| Built-in Thermal Printer | |||
| Alarm | 100, 1000, 10000 Class alarm | ||
| Date storage | 10000 groups | ||
| Max. Particle concentration | 35000 particles/L | ||
| Light source | semiconductor laser(30000 hours mean time between failures) | ||
| Working condition | Temperature:10~35℃; Humidity:20%~75%RH; Atmosphere Pressure: 86~106Kpa | ||
| Optional | trolley for clean room | ||
