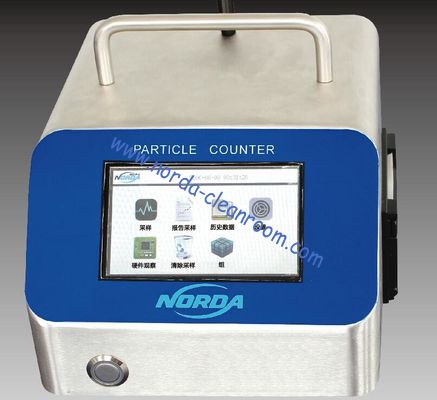

Touch screen Particle Counter model: ND-E3012/E3013/E3016s--2.83L/min, 0.1cfm
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Particle Counter | Usage: | Clean Room Test |
|---|---|---|---|
| Wavelength: | Www.nordachina.net | Screen: | LCD Touch Screen |
Description for ND-E3016:
Laser particle counter with touch screen,MODEL ND-E3016, is designed on the base of light scattering principle of particles, in compliance with standards of ISO14644 and EUGMP ,CGMP, with features of multifunction, standardized data and high accuracy.
Feature:
Language: English and Chinese
Different channels: six channel (standard)； two channel,three channels (optional)
LCD Touch Screen,more easy and convenient to operate
Flow rate: 2.83L/min (0.1CFM)
| Model | ND-E3012 | ND-E3013 | ND-E3016s |
| Overall dim.(mm) | 210 x180 x 120(Wide*Deep*High) | ||
| Display | LCD Touch Screen | ||
| Flow rate | 2.83L/min (0.1CFM) | ||
| Weight | 2.8kg | 2.8kg | 2.8kg |
| Power supply | AC or DC(optional) | AC/DC | AC/DC |
| Size channels |
Two channel:0.5,5.0, μm
or selecting from 0.3,0.5,1,3,5,10um |
three channels:0.3,0.5,5.0, μm
or selecting from 0.3,0.5,1,3,5,10um |
|
| Calculation |
calculation of particle concentration can be displayed directly meet: ISO14644-1 EGMP,CGMP and so on |
||
| Sample time | 1~99min | 1~99min | 1~99min |
| Zero count | ≤±10% | ≤±10% | ≤±10% |
| Date output | RS232/USB | RS232/USB | RS232/USB |
| Built-in Thermal Printer or others | |||
| Alarm | 100, 1000, 10000 Class alarm | ||
| Date storage | 2000 groups | 2000 groups | 3000/6000 groups |
| Max. Particle concentration | 35000 particles/L | 35000 particles/L | 35000 particles/L |
| Light source | Laser | Laser | Laser |
| Working condition | Temperature:10~35℃; Humidity:20%~75%RH; Atmosphere Pressure: 86~106Kpa | ||
| Optional | trolley for clean room | ||
